1998 AM General Hummer
4-Passenger Open Top Hard Doors SUVAbout This AM General
1998 AM General Hummer 4-Passenger Open Top Hard Doors SUV
| Condition | Used Clear Title |
| Miles | 1,586 |
| Engine | 6.5L 8 CYLINDER |
| Transmission | 4 Spd Automatic |
| Drivetrain | All Wheel Drive |
| Exterior Color | Bright White |
| Interior | Black and white |
| Stock # | 181155 |
| VIN # | 137ZA9038WE181155 |
| Warranty |
Vehicle Overview
THIS HUMMER CANNOT BE SOLD OR REGISTERED IN CALIFORNIA

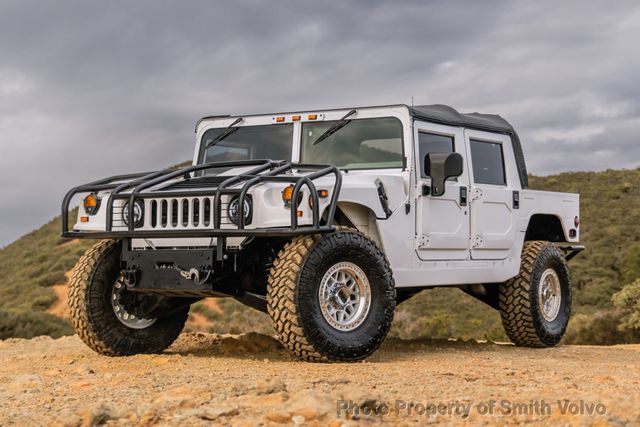

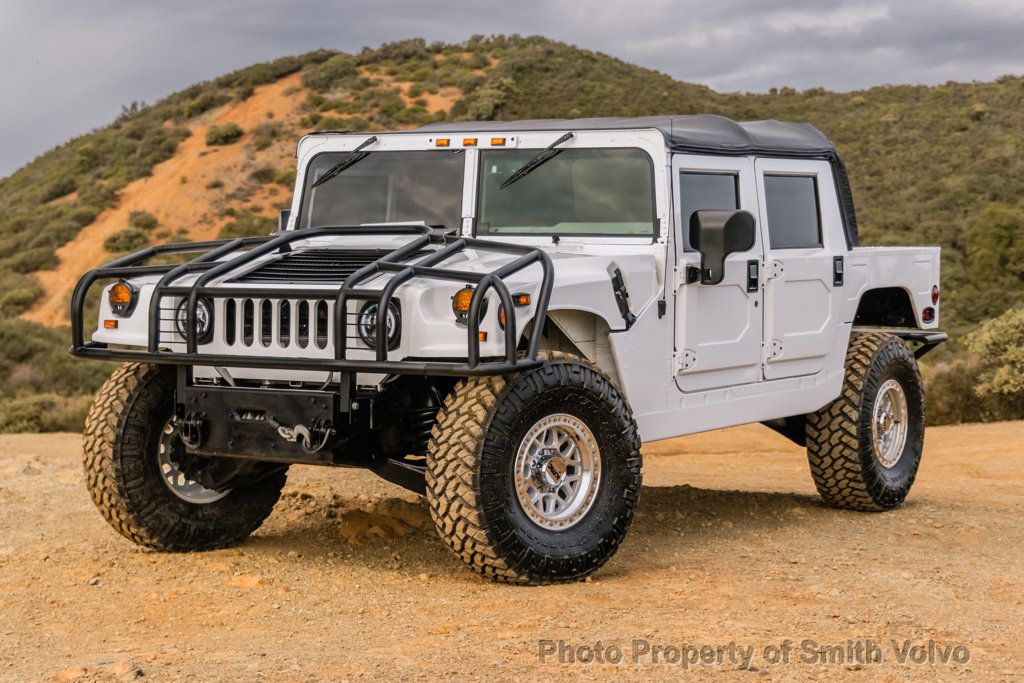

Hurry down to Smith Volvo for this 1998 AM General Hummer four-door open top. The truck is powered by a replacement Duramax 6.6-liter turbodiesel V8 mated to an Allison four-speed automatic transmission and a dual-range transfer case, and it has been refinished in white over a reupholstered black and white leather interior. Additional equipment includes LED headlights and taillights, a brush guard, a winch, a removable leather soft top, a rear step bumper, a receiver hitch, a roll bar, 22? V-Rock Off-Road wheels, a 2? lift kit, power windows, high-back seats, a MOMO steering wheel, air conditioning, power windows, and a Sony touchscreen stereo.

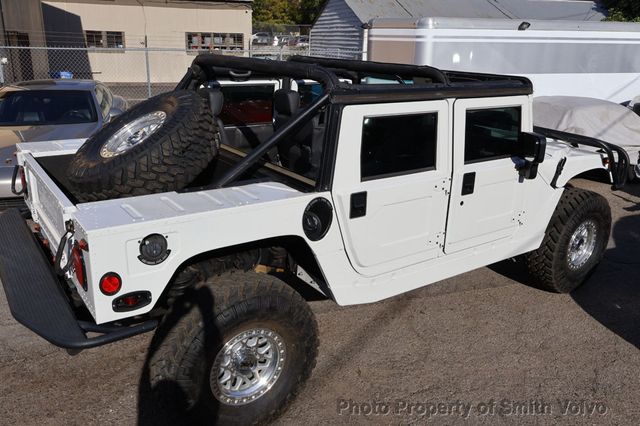

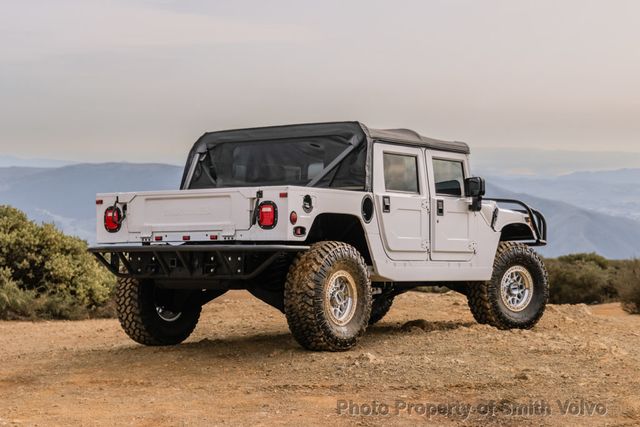

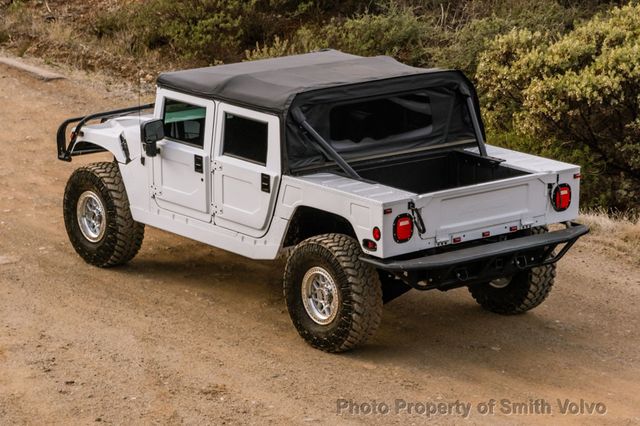

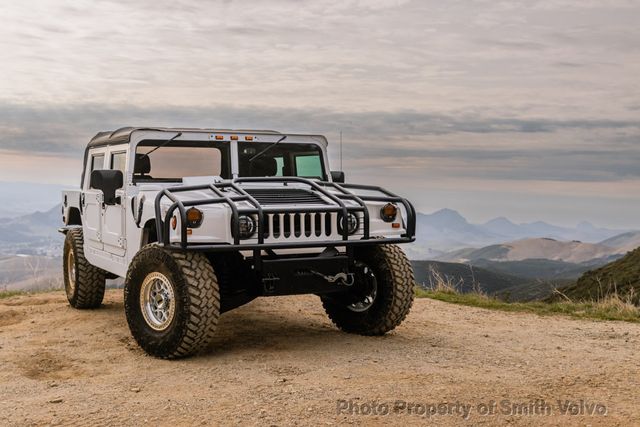

There were 945 civilian Hummers produced for the 1998 model year. This four-door open-top example was refinished in white in 2020. Features include a clamshell hood, LED headlights and taillights, a brush guard, a front winch, a split windshield, a removable leather soft top, a fold-down tailgate, a receiver hitch, and a rear step bumper. The windshield, bumpers, hood latches, grille, tow hooks, and mirrors were replaced in 2020.
Black-finished 22? V-Rock Off-Road wheels are mounted with 38x13.5? Nitto Trail Grappler M/T tires. The brake pads, calipers, and rotors were replaced with Wilwood components in 2023, and the truck has been fitted with a 2? lift.

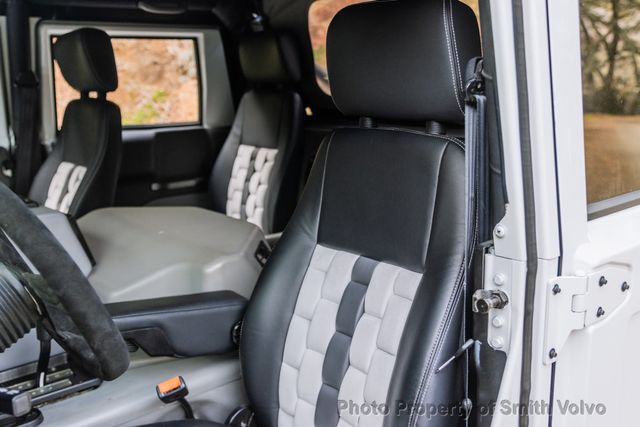

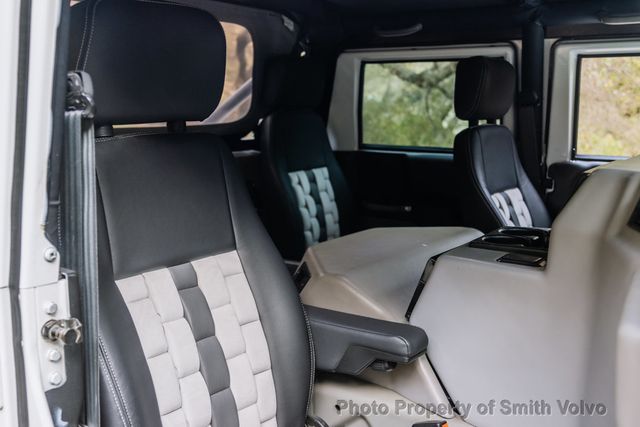

The interior was refreshed with black and white leather over the four high-back bucket seats. The flooring has been sprayed with Rhino Liner, and additional equipment includes power windows, air conditioning, replacement carpeting, and a Bluetooth-capable Sony touchscreen stereo.
The three-spoke MOMO steering wheel frames a replacement 100-mph speedometer, an AutoMeter tachometer, and auxiliary gauges for battery voltage, oil pressure, coolant temperature, and fuel level. The digital odometer shows a little over 1,500 miles, which represents the distance covered since the completion of the build.

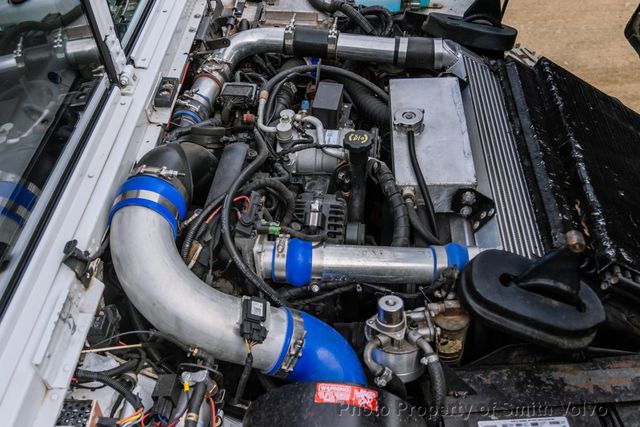

The 6.6-liter Duramax turbodiesel V8 is was installed in 2020 and delivers power to all four wheels through an Allison four-speed automatic transmission, a dual-range transfer case, and a locking rear differential. The air conditioning and lift pump systems were overhauled in 2023, at which time the oil was changed and the steering gear assembly, fuel pump, sending unit, fuel lines, and gaskets were replaced.
Financing Information
Contact us today at 888-419-8320 for more information, or fill out our Online Credit Application to begin the pre-approval process today.
Payment Calculator
Estimated Monthly Payment:
$0.00
Warranty Information
Contact Us at 888-419-8320
Smith Volvo
1219 Monterey St
San Luis Obispo, CA 93401
View Map & Get Directions
Call Us About This Vehicle: 888-419-8320
888-419-8320| Monday: | 8:30a.m. - 6:30p.m. |
| Tuesday: | 8:30a.m. - 6:30p.m. |
| Wednesday: | 8:30a.m. - 6:30p.m. |
| Thursday: | 8:30a.m. - 6:30p.m. |
| Friday: | 8:30a.m. - 6:30p.m. |
| Saturday: | 9:00a.m. - 6:00p.m. |
| Sunday: | 11:00am- 3:00pm |
- Bright White with Black and white Interior
- Air Conditioning
- Rear A/C
- Power Locks
- Power Steering
- Power Windows
- All Wheel Drive
- Center Arm Rest
- Tachometer
- Sliding Rear Window
- AM/FM
- Cassette
Features & Specifications *
- 6.5L (396) naturally-aspirated diesel V8 engine
- Serpentine drive belt
- HD 4-speed electronically-controlled automatic transmission w/OD
- 2-speed transfer case
- Torque-biasing differentials
- Full-time four wheel drive
- 124 amp alternator
- HD multiple-cooling systems-inc: engine coolant, engine oil, transmission oil, transfer case oil, pwr steering fluid
- Welded steel box-section frame w/5 crossmembers
- 130" WB
- 10,300# GVW
- 3660# payload
- 4100# capacity front/6800# capacity rear GAWR
- 4-wheel independent double A-frame suspension w/HD open-end coil springs
- HD hydraulic shock absorbers
- LT37/12.50R16.5D SBR BSW Goodyear Wrangler MT tires
- 16.5" one-piece steel wheels
- Pwr-assisted variable-ratio steering
- 4-wheel hydraulic inboard-mounted pwr disc brakes
- Dual fuel tanks (25 gallon main/17 gallon auxiliary)
- Vehicle Name : AM General Hummer
- Body Style : 4 Door Open Top
- Body Code : 130" WB
- Drivetrain : 4-Wheel Drive
- Gross Axle Wt Rating - Front (lbs) : 4100
- Gross Axle Wt Rating - Rear (lbs) : 6800
- Curb Weight - Front (lbs) : 3652
- Curb Weight - Rear (lbs) : 2988
- Gross Vehicle Weight Rating Cap (lbs) : 10,300
- Gross Combined Wt Rating (lbs) : 14,800
- Dead Weight Hitch - Max Trailer Wt. (lbs) : 7500
- Dead Weight Hitch - Max Tongue Wt. (lbs) : 750
- Fifth Wheel Hitch - Max Trailer Wt. (lbs) : N/A
- Fifth Wheel Hitch - Max Tongue Wt. (lbs) : N/A
- Engine Order Code : DYA
- Engine Type : Diesel V8
- Displacement : 6.5L/396
- Fuel System : MFI
- SAE Net Horsepower @ RPM : 170 @ 3400
- SAE Net Torque @ RPM : 290 @ 1700
- Trans Order Code : 4L80-E
- Trans Type : 4
- Trans Description Cont. : HD Automatic w/OD
- First Gear Ratio (:1) : 2.48
- Second Gear Ratio (:1) : 1.48
- Third Gear Ratio (:1) : 1.00
- Fourth Gear Ratio (:1) : 0.75
- Reverse Ratio (:1) : 2.08
- Transfer Case Model : New Venture #242
- Transfer Case Gear Ratio (:1), High : 1.00
- Transfer Case Gear Ratio (:1), Low : 2.72
- Cold Cranking Amps @ 0° F (Primary) : 600
- Cold Cranking Amps @ 0° F (2nd) : 600
- Maximum Alternator Capacity (amps) : 124
- Engine Oil Cooler : Yes
- Frame Type : Box Ladder
- Suspension Type - Front : Coil Spring
- Suspension Type - Rear : Coil Spring
- Axle Type - Front : Indep Dbl A-Frame
- Axle Type - Rear : Indep Dbl A-Frame
- Axle Ratio (:1) - Front : 2.73
- Axle Ratio (:1) - Rear : 2.73
- Steering Type : Power Variable Ratio
- Steering Ratio (:1), On Center : 13
- Steering Ratio (:1), At Lock : 16
- Turning Diameter - Curb to Curb (ft) : 26.5
- Brake Type : Power
- Disc - Front (Yes or ) : Yes
- Disc - Rear (Yes or ) : Yes
- Rear Door Type : N/A
- Heat-treated/corrosion-resistant aluminum alloy body
- Canvas top
- Tonneau cover
- HD rear bumper
- Galvanized steel doors
- Dual black swingaway mirrors
- Black door lock bezels
- Halogen headlights
- EZ-Kool glass
- Windshield wiper/washer system
- Sliding rear window
- Heat & sound insulation
- Front Tire Size : 37X12.5R16.5
- Rear Tire Size : 37X12.5R16.5
- Front Wheel Material : Steel
- Rear Wheel Material : Steel
- Wheelbase (in) : 130
- Length, Overall w/rear bumper (in) : 184.5
- Width, Max w/o mirrors (in) : 86.5
- Height, Overall (in) : 76.8
- Overhang, Front (in) : N/A
- Ground Clearance, Front (in) : 16
- Ground Clearance, Rear (in) : 16
- Cargo Area Length @ Floor to Seat 1 (in) : 76.5
- Cargo Area Length @ Floor to Seat 2 (in) : 44
- 4-passenger seating-inc: (4) high-back bucket seats
- Driver/passenger armrests
- Padded interior
- Pwr windows w/lockout feature
- Pwr door locks
- Instrumentation-inc: speedometer, odometer, tachometer, fuel level, engine coolant temp, oil pressure, voltmeter
- Flow-through ventilation
- Air conditioning w/auxiliary air/heat
- AM/FM stereo radio w/cassette
- Glove box
- Utility lighting pkg
- Passenger Capacity : 4
- 3-point seat belts for all seating positions
- Energy-absorbing steering column
- Side door impact beams
- EPA Fuel Economy Est - City (MPG) : N/A
- EPA Fuel Economy Est - Hwy (MPG) : N/A
- Maximum Alternator Watts : - TBD -
- Total Cooling System Capacity (qts) : - TBD -
- Spring Capacity - Front (lbs) : - TBD -
- Spring Capacity - Rear (lbs) : - TBD -
- Axle Capacity - Front (lbs) : - TBD -
- Axle Capacity - Rear (lbs) : - TBD -
- Shock Absorber Diameter - Front (mm) : - TBD -
- Shock Absorber Diameter - Rear (mm) : - TBD -
- Stabilizer Bar Diameter - Front (in) : - TBD -
- Stabilizer Bar Diameter - Rear (in) : - TBD -
- Front Tire Capacity (lbs) : - TBD -
- Rear Tire Capacity (lbs) : - TBD -
- Revolutions/Mile @ 45 mph - Front : - TBD -
- Revolutions/Mile @ 45 mph - Rear : - TBD -
- Front Wheel Size (in) : 16.5 x - TBD -
- Rear Wheel Size (in) : 16.5 x - TBD -
- Turning Diameter - Wall to Wall (ft) : - TBD -
- Front Brake Rotor Diam x Thickness (in) : 10.5 x - TBD -
- Rear Brake Rotor Diam x Thickness (in) : 10.5 x - TBD -
- Fuel Tank Capacity, Approx (gal) : 25
- Aux Fuel Tank Capacity, Approx (gal) : 17
- Fuel Tank Location : - TBD -
- Aux Fuel Tank Location : - TBD -
- Front Head Room (in) : - TBD -
- Front Leg Room (in) : - TBD -
- Front Shoulder Room (in) : - TBD -
- Front Hip Room (in) : - TBD -
- Second Head Room (in) : - TBD -
- Second Leg Room (in) : - TBD -
- Second Shoulder Room (in) : - TBD -
- Second Hip Room (in) : - TBD -
- Overhang, Rear w/bumper (in) : - TBD -
- Ground to Top of Load Floor (in) : - TBD -
- Rear Door Opening Height (in) : - TBD -
- Rear Door Opening Width (in) : - TBD -
- Side Door Type : - TBD -
- Side Door Opening Height (in) : - TBD -
- Side Door Opening Width (in) : - TBD -
- Step Up Height - Front (in) : - TBD -
- Step Up Height - Side (in) : - TBD -
- Cargo Area Length @ Floor to Console (in) : - TBD -
- Cargo Area Width @ Beltline (in) : - TBD -
- Cargo Box Width @ Wheelhousings (in) : - TBD -
- Cargo Box (Area) Height (in) : - TBD -
- Cargo Volume to Seat 1 (ft³) : - TBD -
- Cargo Volume to Seat 2 (ft³) : - TBD -
- Cargo Volume to Seat 3 (ft³) : - TBD -
- Cargo Volume to Seat 4 (ft³) : - TBD -
- 1,586 Miles
- No Known Mechanical Problems
- Excellent Interior
- Excellent Carpets
- Excellent Seats
- Excellent Dashboard
- Excellent Panels / Headliner
- Excellent Exterior
- Excellent Original Paint
- Excellent Trim Condition
- Excellent Glass Condition
- No Visible Rust
- No Known Accidents
- No Known Bodywork
- Fully Detailed
